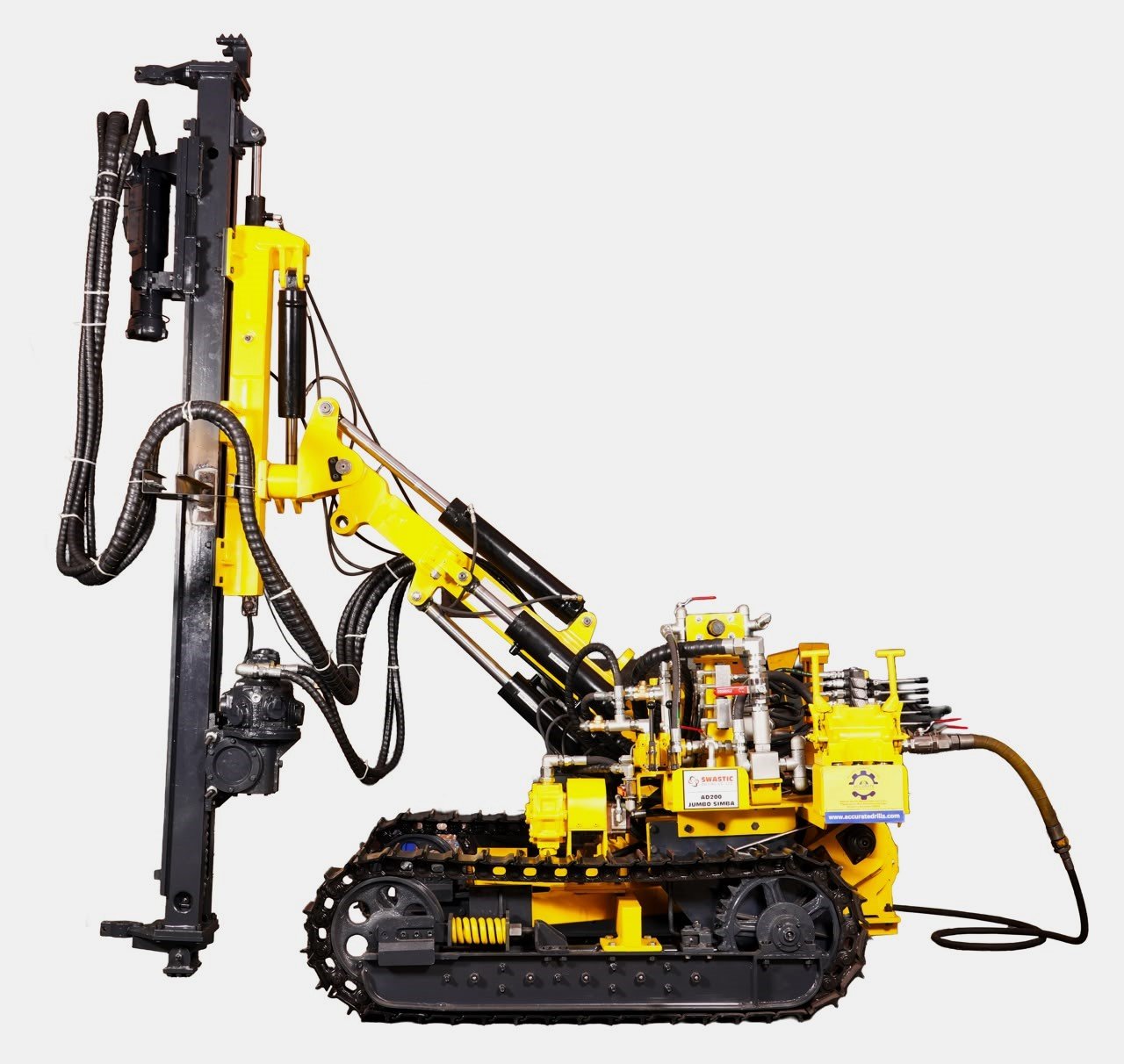

The AD200 pneumatic crawler drill is a self-propelled, crawler-mounted rock drilling rig with a 100% pneumatic drive system. It supports DTH drilling and top hammer configurations, with an articulated tower for positioning at different drilling angles. Its tracked platform, 7.5 HP DTH rotary head and configuration-dependent drilling diameter range of 41–143 mm provide options for different rock drilling requirements.
Technical Specifications
| Parameter | Supplied specification |
|---|---|
| Model | AD200 |
| Brand | SWASTIC |
| Drive system | 100% pneumatic |
| DTH rotary head power | 7.5 HP |
| Mast dimension | 3.5–5.7 m |
| Minimum air supply | 375 CFM |
| Air pressure | 8–14 bar; confirm by configuration |
| Rock hardness stated | 350–450 Brinell |
| Drilling diameter | 41–143 mm; configuration dependent |
| Pull down | 1,830 kg, as stated on sheet |
| Pull back | 1,825 kg, as stated on sheet |
| Travel speed | 3.5 km/h |
| Gradeability | 30° |
| Track oscillation | 15° right + 15° left |
| Dimensions, L × W × H | 1,850 × 1,750 × 1,670 mm |
| Minimum tunnel size stated | 4.5 × 3 m |
| Operating weight | 2,750 kg |
The AD200 pneumatic crawler drill combines a self-propelled tracked platform with a pneumatic drilling system. Available with DTH and top hammer configurations, the machine can be selected according to the required hole diameter, drilling depth, direction and rock conditions.
The rig connects to an external compressor or compressed-air supply. Its crawler-mounted arrangement allows the machine to move and position at the drilling location, while the articulated tower supports drilling at multiple angles.
The DTH configuration uses a down-the-hole hammer and compatible drill tooling. Select the arrangement according to hole diameter, required depth, rock conditions and available compressed-air capacity.
The top hammer configuration uses a compatible drifter and drilling tools. Share your drilling direction, target depth and hole diameter with our team to identify the appropriate setup.
Maximum drilling capacities and air requirements should be confirmed for the configuration supplied.
Explore our DTH hammers, DTH bits and pneumatic drifters to discuss suitable tooling for your drilling configuration.
Before selecting your crawler drilling machine, provide:
These details help our team recommend the machine configuration and compatible drilling accessories. Before ordering the AD200 pneumatic crawler drill, share your required hole diameter, target depth, drilling direction and available compressor capacity. Our team can review these details and recommend a suitable drilling configuration and compatible accessories for your application.
For general background on compressor selection, refer to the Compressed Air & Gas Institute’s compressed-air guidance. Confirm the specific air requirements for your selected AD200 configuration with our team.
